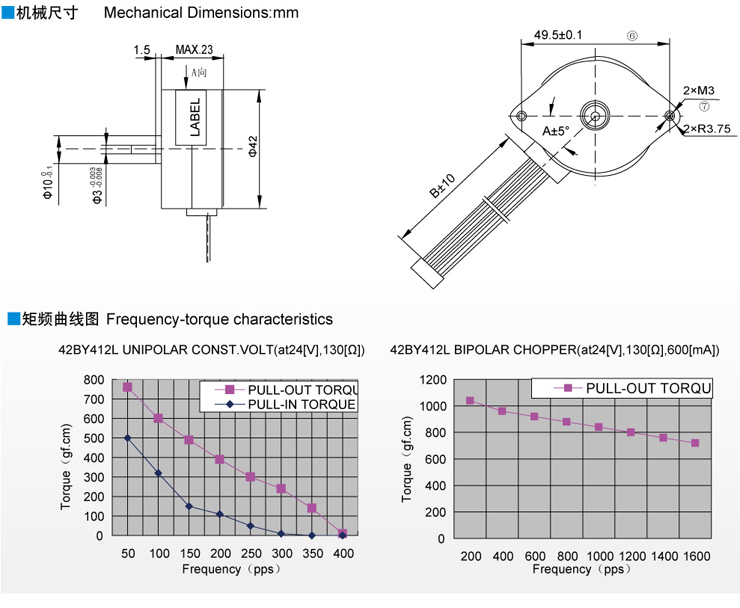

42BY412L PM Stepper Motor
 |
Introduction | |
| Application : | Dot Matrix Printer | |
| Copier | ||
| Fax machine | ||
| Scanners | ||
| Download : | 42BY412L.pdf | |
| Model |
Rated Voltage (V) |
Coil Resistance (Ω） |
Insulation Resistance （MΩS） |
Dielectric Strength |
Step Angle |
Drive Method |
Drive Circuit |
Insulation Grade |
|---|---|---|---|---|---|---|---|---|
| 42BY412L | 12 | 100 | 100 | AC500V 1S | 7.5° | 2-2phase | Unipolar | CLASS E |
| 42BY412L | 34 | 6 | 100 | AC500V 1S | 7.5° | 1-2phase | Bipolar | CLASS E |
