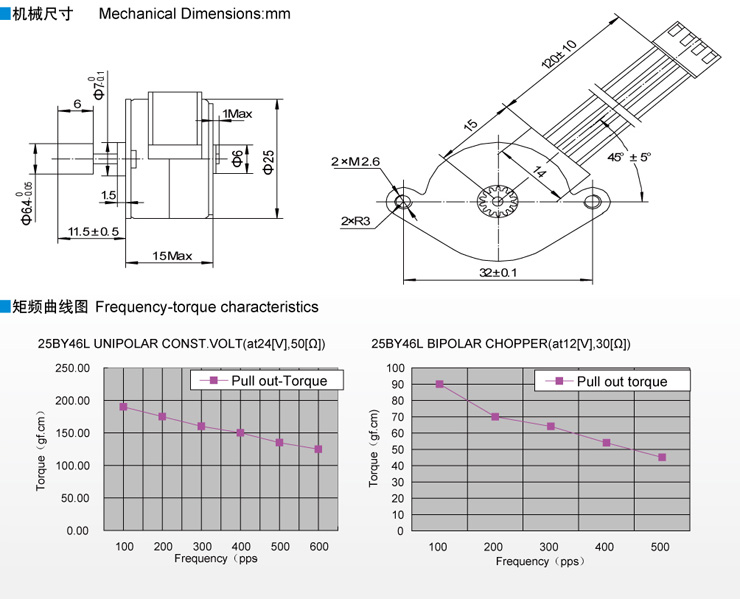

25BY46L PM Stepper Motor
 |
Introduction | |
| Application : | Miniprinter | |
| Valve Control | ||
| Download : | 25BY46L.pdf | |
| Model |
Rated Voltage (V) |
Coil Resistance (Ω） |
Insulation Resistance （MΩS） |
Dielectric Strength |
Step Angle |
Drive Method |
Drive Circuit |
Insulation Grade |
|---|---|---|---|---|---|---|---|---|
| 25BY46L | 24 | 50 | 100 | AC500V 1S | 15° | 2-2phase | Unipolar | CLASS E |
| 25BY46L | 12 | 30 | 100 | AC500V 1S | 15° | 2-2phase | Bipolar | CLASS E |
